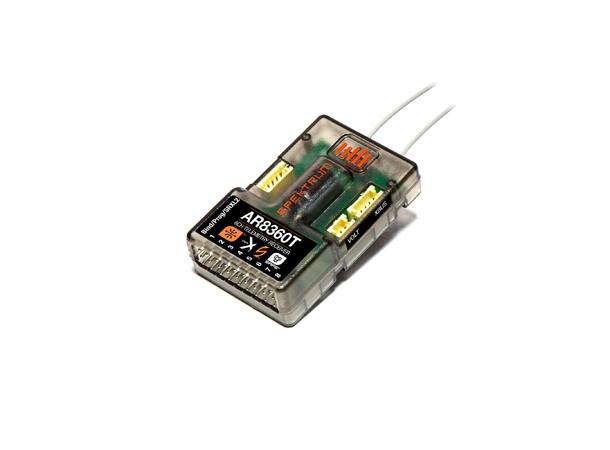

Spektrum AR8360T 8ch Telemetry Safe

Spektrum AR8360T er en 8-kanals DSMX mottaker med 3-akset AS3X gyrostabilisering som kompenserer for bl.a. vind, turbulens og moment. Den har i tillegg telemetri og passer de fleste flytyper men er spesielt rettet mot f. eks. parkflyer og større fly. Mottakeren har innebygget barometer, flere telemetriporter og XBUS. Den har også en egen port for SRXL2.

Med AS3X kan man også benytte seg av Safe-teknologien til Spektrum. Denne gir deg forskjellige flymoduser som lar deg begrense input til flyet som roll-vinkel og pitch. Du kan også sette opp Safe Panic Recovery som retter opp flyet om du mister kontrollen.

Spesifikasjoner

Dimensjoner LxBxH 49x30x15mm
Vekt 16g
Antennelengde 155mm
Bånd 2,4GHz
Kanaler 8
Dataport Ja
Failsafe Ja
Inngangsspenning 3,5 - 9V
Modelltype Multirotor, Seilfly, Helikopter og Fly
Modulasjon DSMX
Range Full
Telemetri Ja
Oppløsning 2048
Vannbestandig Nei



Overview
The Spektrum AR8360T 8 Channel AS3X/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR8360T is a full range 8 channel receiver with built in AS3X stabilization, which counters the effects of wind, turbulence and torque using a 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. There is no delay in control response or limit on control throws. Youll simply feel like youre flying an expertly tuned model that does exactly what you want

The AR8360T features a full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. It also features an SRXL2 port for an SRXL2 Remote Receiver (SPM9747 or SPM4751T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect smart devices, program and update the receiver, bind with a traditional bind plug, or connect a battery. The AR8360T also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last as well as preset failsafe types set through forward programming.

Please Note: The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR8360T receiver.

Features

* Compatible with all Spektrum™ DSM2 and DSMX transmitters
* Built in AS3X Stabilization System with SAFE flight envelope protection
* AS3X and SAFE set up through forward programming directly from your Spektrum transmitter*
* Compact footprint fits most parkflyer size, sport class and giant scale models
* Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need of additional sensors
* Bind button allows for easy binding and eliminates the use of bind plug
* Two external antennas will ensure secure RF coverage from all angles of the aircraft
* Additional RF path redundancy with an additional SRXL2 Remote Receiver (sold separately)
* Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires.
* End pin output pins for easy and compact installation
* Forward Programming capable for setting individual failsafe parameters per channel and more
