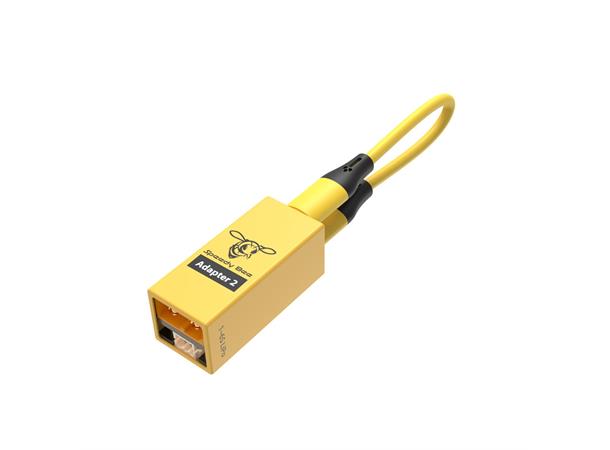

Speedy Bee Adapter 2 / WiFi

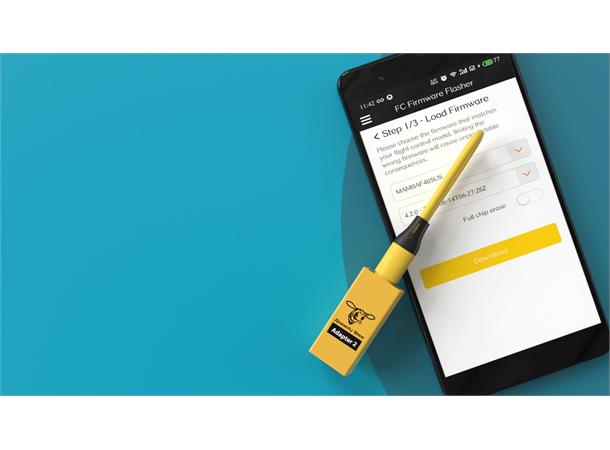

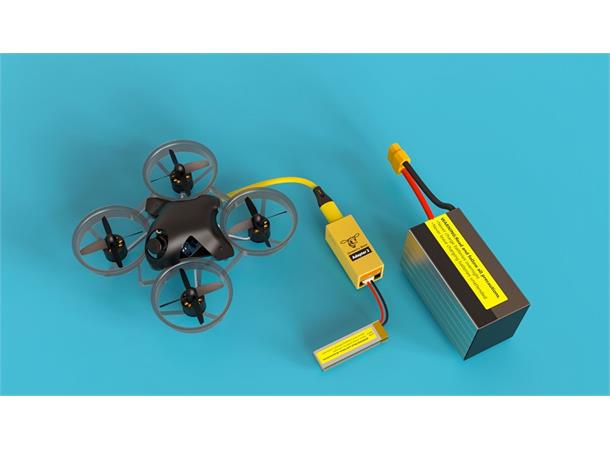

Last ned Speedy Bees konfigurator app og du kan via WiFi justere innstillinger og oppgradere BetaFlight, INav og Emu flightcontrollere. Inngang for XT60 eller PH2.0 batteri og micro-usb kabel inkludert.



The SpeedyBee Bluetooth UART Adapter helps you configure your flight controller settings directly from your phone or tablet without having to plug into your computer every time. The Bluetooth signal also shuts down when your throttle is armed so that there is no interference during flight. As soon as the throttle is disarmed, the signal activates automatically.

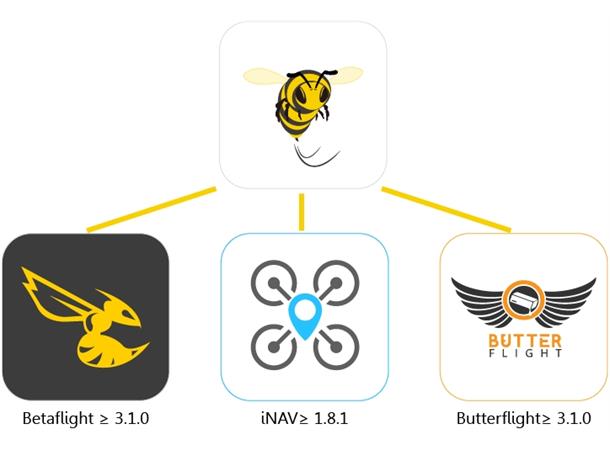

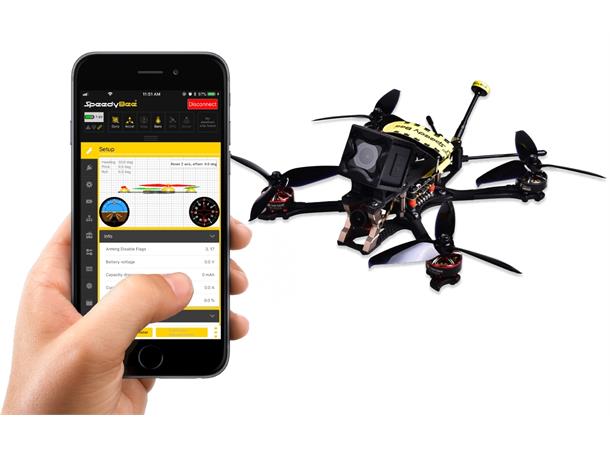

Once you download the SpeedyBee app (requires at least iOS 10 or Android 4.3+) you will be able to tune your quad through the Betaflight configurator. The app also supports CLI and PID settings.

Includes
1x Bluetooth PCB

1x 5PIN Cable

1x 3M Double-sided Tapes

1x Heat shrink tube

1x Manual

Specifications
Output Power: 0dBm

Receiver Sensitivity: -94 dBm

External Interfaces: BROADCAST SWITCH, TX, RX, 3~5V DC Input, GND

Transmission rate: Bidirectional 1K/S

Bluetooth Protocol: Bluetooth Specification V4.0 BLE

Transmission distance: 30m

Frequency range: 2400 MHZ - 2483.5MHZ(2.4G ISM Band)

Baud rate: 2400,4800,9600,14400,19200(default),28800,38400,57600,76800,115200,230400

Operating Voltage: 3.3V - 5.0V DC

Working current: 8.3mA~10mA

Weight: 1.4g

Dimensions: 27*15*4.5mm
