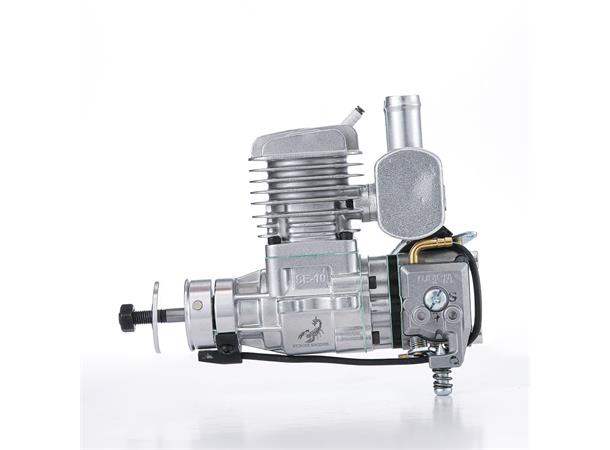

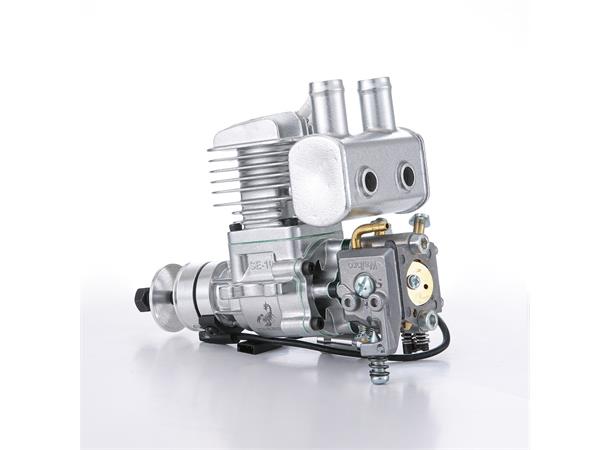

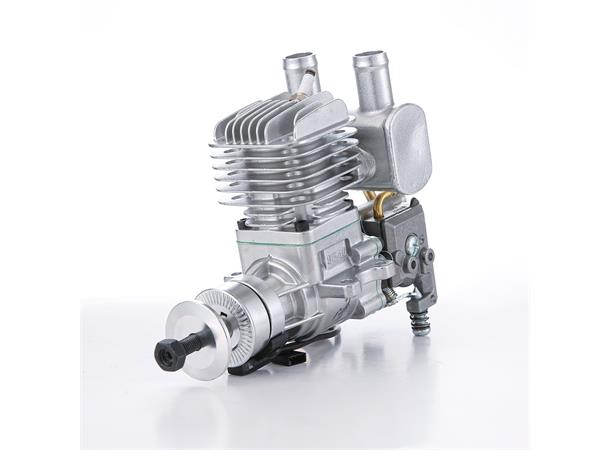

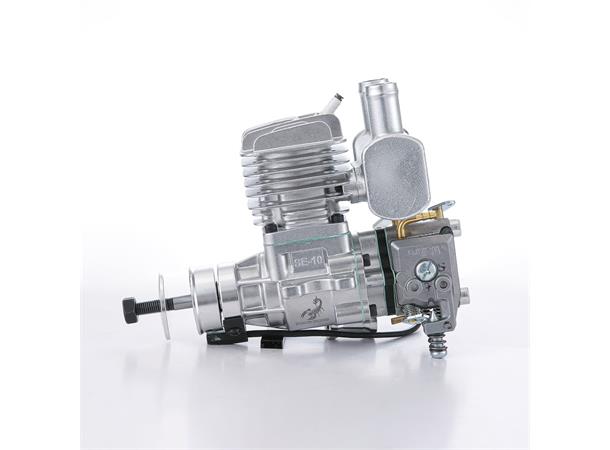

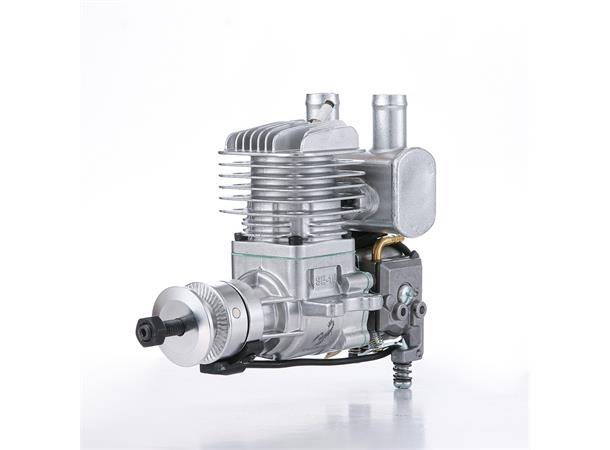

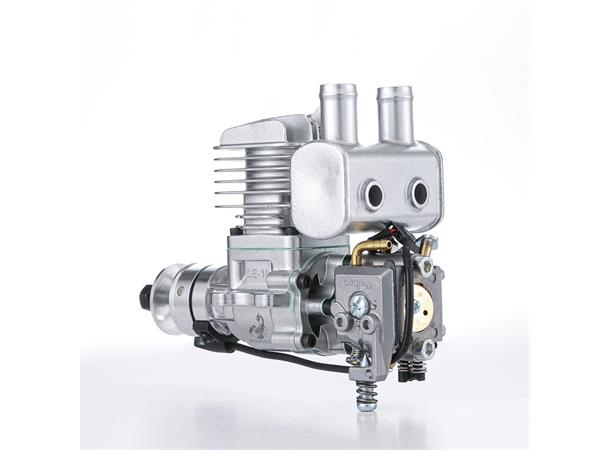

RCGF 10CC Rear Exhaust BM Stinger

10CC bensinmotor som er laget for å brukes i modellfly(40-50.size) som er designet for glowmotor. Motoren har bakmontert eksos og den er bygget slik at den enkelt kan festes på typiske fuelmotorfester. Det følger med motorfeste i esken. Kommer komplett med nytt elektrisk tenningsanlegg og potte og veier kun 468g.

10cc 2-takt bensinmotor for modellfly, det må benyttes oljeblanding i bensin og motor må kjøres inn, anbefalt innkjøringspropell er 13x6. Motoren yter statisk thrust på 3,8kg.

Spesifikasjoner

Forgasser Walbro
Tenning Elektronisk DC-CDI(anbefalt 2S LiPo)
Spenning inn tenning 6-14V
Maks effekt 1,9hk @ 15.000RPM
Propellanbefaling 13x6-13x8(9800RPM)/14x6(9000RPM)
Tennplugger NGK-CM6 eller tilsvarende



Glow size: economy and powerful
NEW ENGINE ,NEW Design,More powerful,Stronger material , More precision , More shiningLatest Design & Strong Power
The NEW 10cc RE is the latest design engine. The rear exhaust design make it fit more narrow airplanes especially the warbirds .
Strong Power give you unprecedented fly experience.

RCGF 10cc RE -Stinger

Parameter
Type : 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) : 10cc (.61 cu in)
Bore x Stroke (mm): 1.08 in (27.6mm)*0.67 in (17mm)
Carburetor : Walbro
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
Power supply: 6-14V(Rcexl)
SPARK PLUG: NGK-CM6
Maximum Output : 1.9 hp @ 15000rpm
Requires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 1800-15000rpm
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1) (90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
Lubrication Oil : 2 cycle engine oil
Propeller : 13*7 9800 rpm 14*6 9000rpm (Standard Two leafs prop)
recommended props :13 x 6, 14 x6,13X8,13X7
recommended Airplane: 50 size plane,40 size plane
Cooling System : Air Cooled

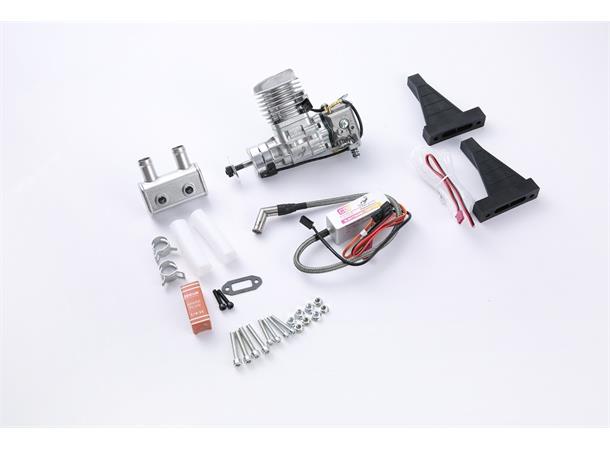

RCGF Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight:
Engine: 1.03 lb (468 g)
Muffler: 1.4 oz (40 g)
Ignition Module: 4.1 oz (115 g)
Total: Weight: 1.37 lb (623 g)

Technical Data:
Ignition Battery: 6-8.4NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: NGK-CM6 or equivalent
Idle Speed: 1800 rpm/min

Static Thrust:
8.38 lb (3.8 kg) @ 328 ft (100 m) altitude
7.94 lb (3.6 kg) @ 5,900 ft (1800 m) altitude
