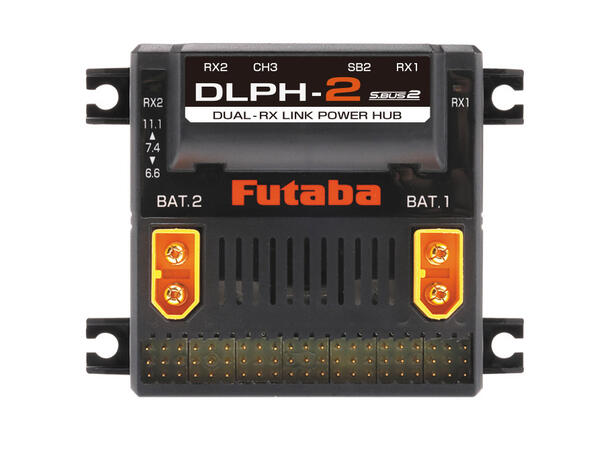

Dual-Link, S-Bus Decoder, Dual Battery

Futaba DLPH-2 - Dual RX Link Power Hub

Equipped with 2 MAX60A systems! Dual RX link power hub. Ideal for aircraft that use many servos, such as large machines! Introducing support for single receiver mode, gyro mode, and FASSTest 26ch!

Features:

• Two receivers and batteries can be connected.
• Electronic switch (current is controlled by FET circuit)
• The telemetry function allows you to display the voltage of 2 power supplies.
• Compatible with 3 types of batteries and equipped with a protection function when connecting different types of batteries
• Equipped with a protection function when the battery level is low.

The following functions have been added from DLPH-1:

• Single receiver mode
• Airplane gyro GYA553 connection mode
• FASSTest 26ch compatible
• Various settings can be made visually by using a transmitter (32MZ WC, etc.)

DLPH-2 specifications:

• Application: 2 receiver switching equipment (dual Rx link system)
• FET (rating): 60A at all times x 2 pieces
• Size: 62.8x62.4x18.1mm
• Weight: 50g
• Operating voltage: 6.4 to 13.0 V (2 batteries (XT60 connector))
• Accessories: Switch/receiver, gyro connection cord x 3/mini driver/flange damper/grommets/wood screws
